NKP Peristaltic Pump – Product Information
Overview
The NKP peristaltic pump series from KAMOER fluid tech offers reliable fluid transfer with a flow rate range of 5.2-90ml/min. Designed for efficiency and ease of use, these pumps feature a compact design with low power consumption.
Key Features
- Easy maintenance: Quick-change pump head design
- Quiet operation: Lowest level of noise in its class
- Durable construction: Positive inversion structure
- Minimal maintenance: Simple, robust design
- Smooth flow: Three-rotor system for moderate pulse
Key
Technical Specifications

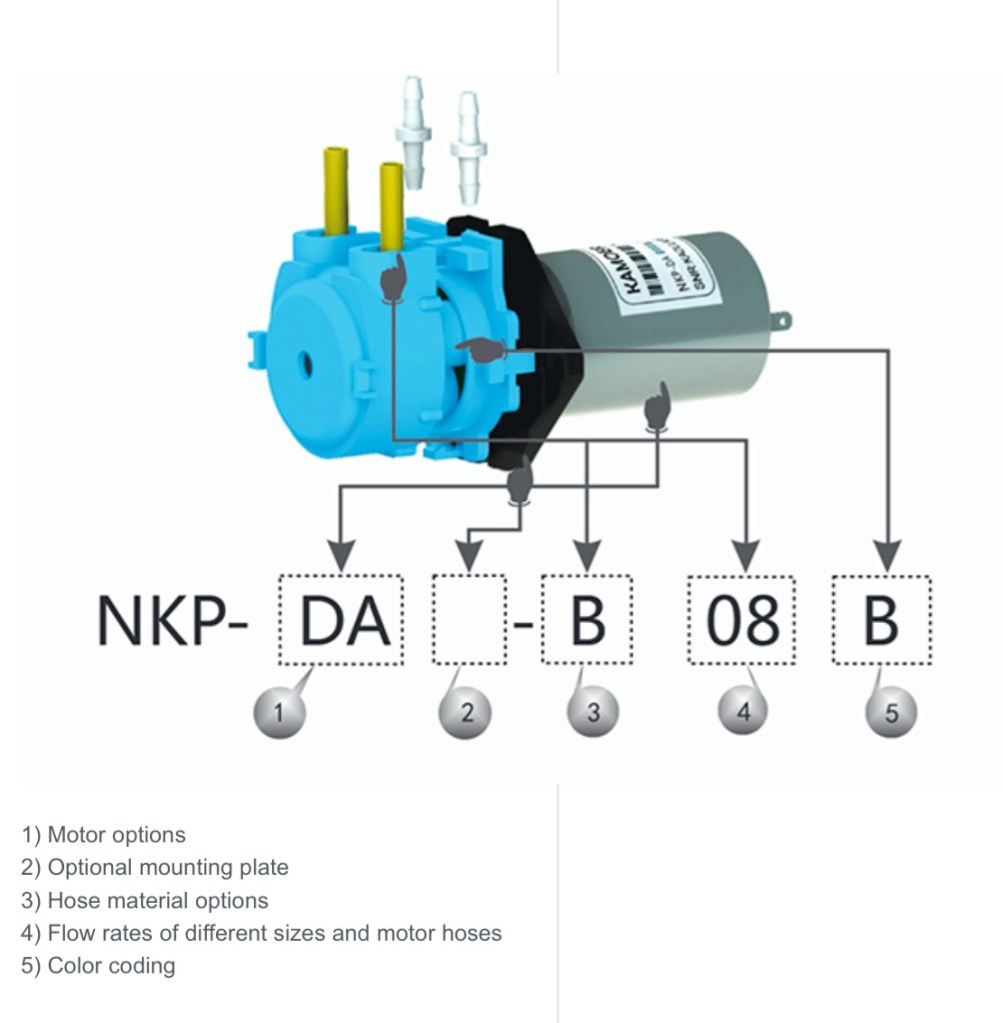

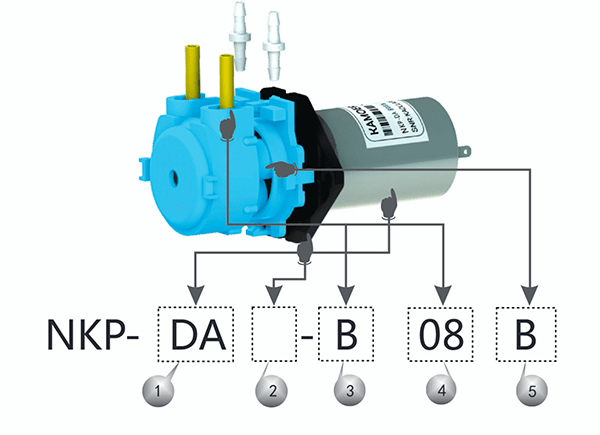

Motor Options
Code – Voltage
ONLY [DA – 24V DC] AVAILABLE
Tubing Options
Code – Material
S – Silicone
Flow Rates (ml/min)
Tube Code IDรOD (mm) DH DC DE DA S04 | B08 | 2.5ร4.5 | โฅ22 | โฅ47 | โฅ48 | โฅ48 |

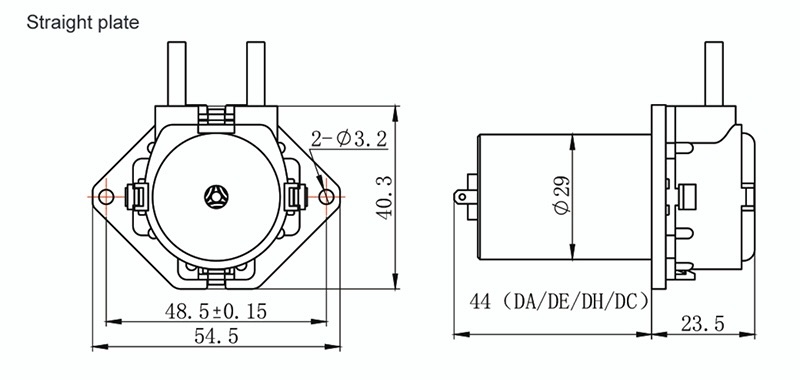

Physical Specifications
Dimensions:
- Straight plate: 54.5 ร 48.5 ยฑ0.15 mm
- Weight: 110g
- Operating Conditions:
- Temperature: 0-40ยฐC
- Humidity: <80% RH
About KAMOER
KAMOER fluid tech (Shanghai) Co., Ltd. specializes in precision fluid handling solutions.
Contact Information:
TEL: 86-21-67742578
FAX: 86-21-67741776
www.kamoer.com
Building 7#No 7459, Beisong Road, Songjiang District, Shanghai, China
Note: All specifications subject to change. Please verify with latest product manual before purchase.
